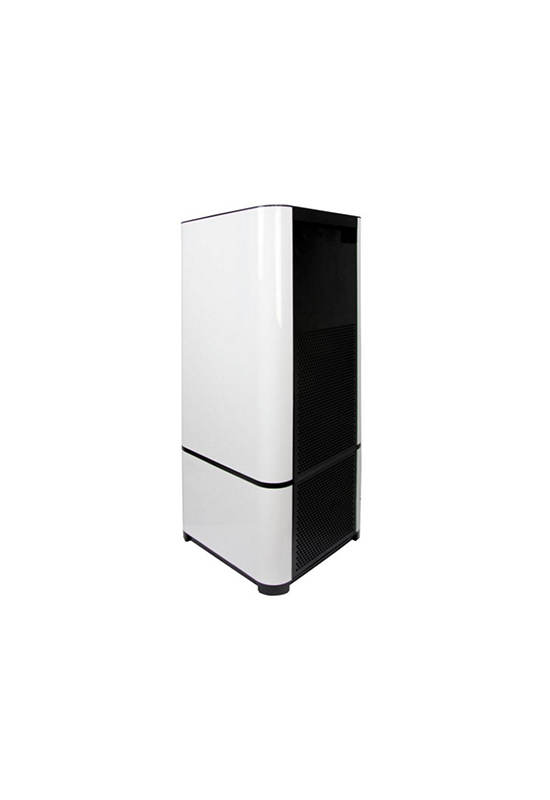

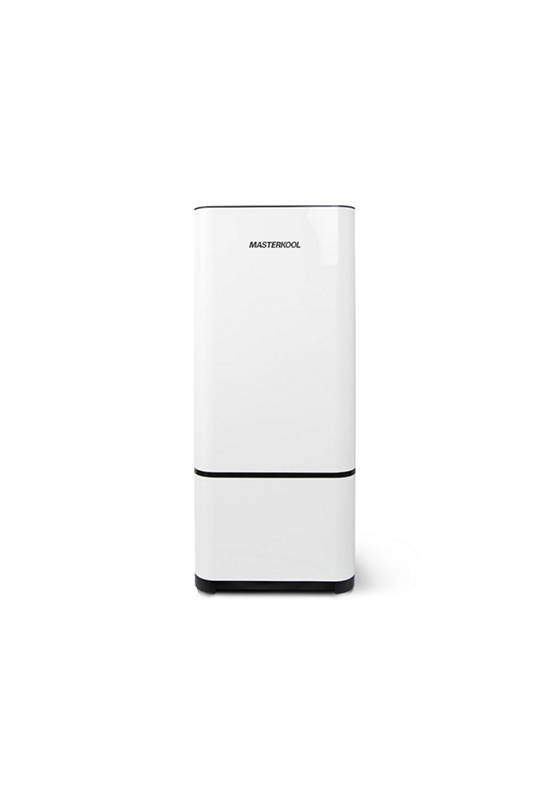

Masterkool Air purifier pm2.5 Model AP05

Specification
Unit Dimension: 280*280*710mm
Voltage/Frequency: 100-240V-50/60Hz
Power: 48W
Air Flow: 450m2 /h
CADR (smoke): 350-400m3/h
Room Size: 24-42m2

Product Structure
the equipment to be taken out of the packing box is in stable position.
open the left and right side plates, remove the HEPA and activated carbon composite filter mesh, remove the mesh plastic bag, and then put it back.
plug the power plug into the wall socket, and make sure that the voltage of the socket is consistent with the nominal voltage of the nameplate of the machine.

Operating Instructions
Standby
When the power is plugged in and the whole machine is turned on, it is in standby state at this time. The power indicator light is automatically turned on and flashes in the form of breathing light
Starting up
Click power on the key to turn on, the default automatic mode for starting up, the negative ions are turned on by default, and the numerical value of PM2.5 is displayed by default by the digital tube.
Machine runs 30 seconds after air quality lamp displays according to current air quality and automatically selects the corresponding gear to run.
Manual regulation of wind speed
In any mode, press %’.machine to change to manual speed adjustment, the wind speed gear is  1-4

Timed shutdown function
Click the time function key and the icon will light up, and the «time» will be displayed on the value. Press the time key again and set the time shutdown time to be 1-8 hours.
As the setting time of is completed for 5 seconds, the timer is turned off to start counting down, and the value is transferred back to the display state of PM2.5.
When the countdown is over, the machine automatically shuts down and goes into standby mode.
Timing cancel: long press the timing key for 5 seconds, the timing icon is off and the timing function is off;
Sleep mode
In other modes, press the sleep function button, and the sleep icon is lit up, and the rest is all turned off.
Exit sleep mode: press any key to exit sleep mode, and the machine goes into the state before setting sleep function.
Auto mode
In other modes. press the auto function key. the auto icon lights up. and the wind
speed is automatically controlled according to the current air quality.
Negative ion
Negative ions are turned off by default. In any state, negative ions can be turned on manually.
Filter reset
After the filter life expires, the filter life light will flash to remind you every time the filter is turned on.
Filter reset: After the filter is replaced, press and hold the negative ion button for more than 3S, the filter indicator will reset, all lights up, and the timing restarts.
UV lught
The UV lamp is turned off by default. In any state, the UV lamp button can be turned on manually.

Maintenance
When to replace the filter
The power plug must be unplugged and power connection must be disconnected before maintenance.
High-efficient HEPA filter
Filters can’ t be cleaned to remain effective;
Do not wash or vacuum the filters.
Activated carbon strainer
Replace the carbon filter every 6-12 months
W ipe the machine body and panels with a Dry soft cloth.
Please do not use a rough cloth to wipe, or it will cause the surface damage.
Please use dry cloth to handle the power line so as to prevent the residual water on the plug surface from causing electric shock.
Please use neutral detergent and do not use cleaning powder, alkaline detergent thinner. bleaching agent, alcohol and gasoline to clean the machine body.

Warranty 1 year
