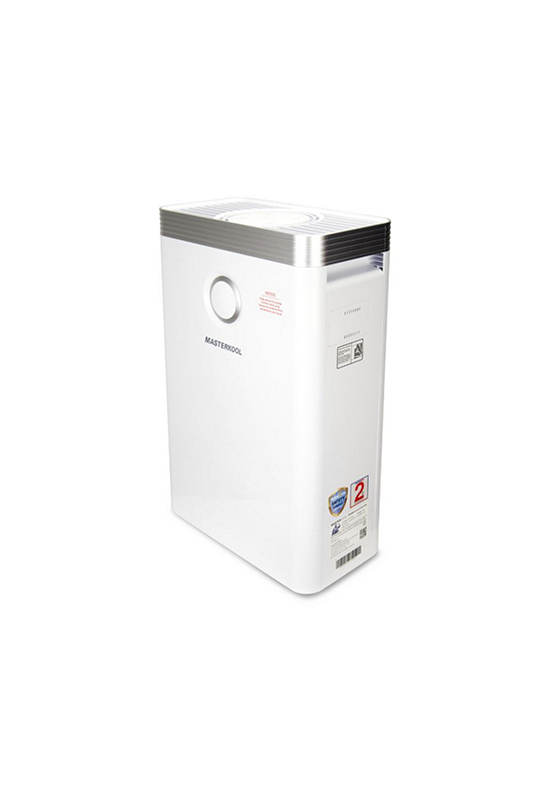

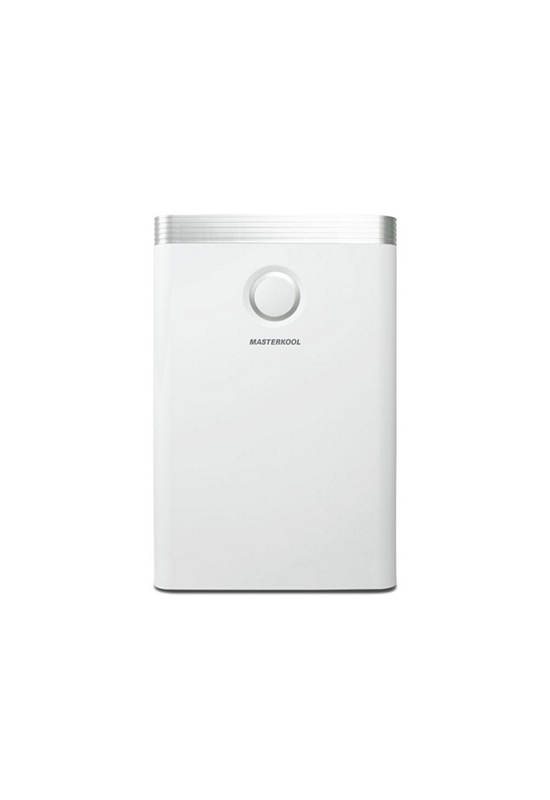

Masterkool Air purifier pm2.5 Model AP04

Operation Instructions
Touch and display panel Display
Speed button, showing the fan speed levels.
Fan speed switches from 2-3-1-A.
A means auto mode, fan speed changes via air quality.
Timer button to show time setting.
Time setting can switch from 1h-12h.
Power on state, touch «TIMER» to turn off the unit.
Stand-by state, touch «TIMER» to turn on the unit.
ON/OFF, to turn on/turn off the unit.
After turn on the unit, 30s preheat will show and the icons light turn green.
SLEEP
When touch «SLEEP» button, only this icon light on, others not.

Filter Replacement
Turn down the unit plug off the power cord.
Open the filter cover
After the unit is powered off, catch the buckle position of the filter cover and pull it out.
Please take out the combiantion filter,and pack the used filter into bag to avoid any second pollution.
The preliminary filter can be cleaned and reused.
The combination filter that reaching its service life cannot be reused even if it is clean. Please treat it as non-burnable waste.
Adjust the direction of the new filter to correspond to the filter slot of the purifier and install the filter in, and then close the cover.
Turn on the power, touch the «ON/OFF» button to turn on the unit. And long press the «timer+ ON/OFF» button for 3s to reset the filter time.

Technical Parameters
Unit Dimension 510*330*170mm
G.W. 6.0kg
Rated Power 45W
Rated Voltage 220V~240V 50/60Hz
Coverage Area 14.7~25.2
Noise 61dB(A)
CADR(Particles) 210m/h
N.W. 4.5kg

warranty 1 year
