IsoAcoustics OREA Graphite – HiFI Isolators

Provides extraordinary levels of isolation for high fidelity audio components and turntables.

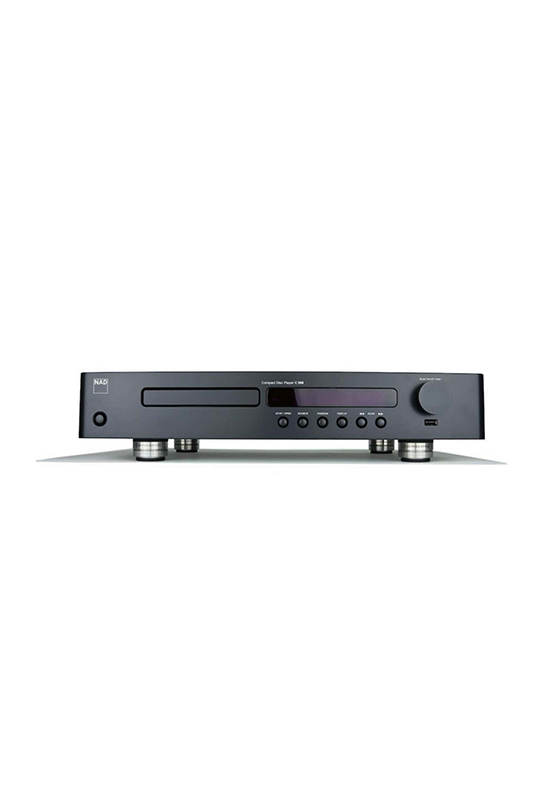

OREA Series: Eliminates parasitic vibrations and provides greater sound clarity and focus. The OREA’s are ideal for electronic components including Amplifiers, DAC’s, CD Players, Speakers, and Turntables. Made of machined stainless steel, these isolators have a low-profile design to minimize any increase in height.

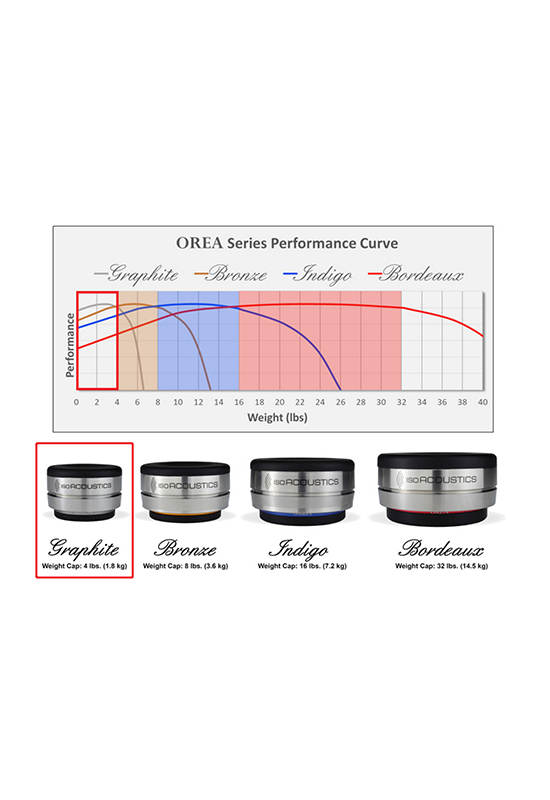

Each OREA model is designed with a different weight capacity. They each have a coloured ring on the bottom isolator that denotes the model and weight capacity. The OREA series are packaged individually to allow greater flexibility when determining the number of units to use. We recommend a minimum of 3 units under each component, depending on weight.

Technology :  The upper flange of the OREA’s are designed to provide a suction cup like effect and adhere to the underside of the component, while the lower flange adheres to the supporting surface. All the energy is managed within the core of the OREA’s, which are tuned to work within specific weight ranges. This results in greater sound clarity and a more open soundstage providing authentic, three-dimensional sound.

Dimensions(W x H) : 1.6″ x 1.1″ (40 mm. x 27 mm.)

Weight Capacity : 4 lbs (1.8 kg) /unit

Includes : 1 unit/box

Total Weight Capacity = [Weight cap. per isolator] x [Qty of Isolators]

Quantity of isolators

Graphite 4lbs (1.8kg) / unit

Bronze 8lbs (3.6kg) / unit

Indigo 16lbs (7.2kg) / unit

Bordeaux 32lbs (14.5kg) / unit

3

12 lbs. (5.4 kg)

24 lbs. (10.8 kg)

48 lbs. (21.6 kg)

96 lbs. (43.5 kg)

4

16lbs (7.2 kg)

32lbs (14.4 kg)

64lbs (28.8 kg)

128lbs (58 kg)

5

20lbs (9 kg)

40lbs (18 kg)

80lbs (36 kg)

160lbs (72.5 kg)

6

24lbs (10.8 kg)

48lbs (21.6 kg)

96lbs (43.2 kg)

192lbs (87 kg)

Notes – The weight distribution of the component can also be taken into account. If for example the component is heaviest at the back, then it is common to use 3 isolators with 2 positioned at the back corners and 1 positioned front(center).

”
